1000*1200 mm Solar Glass Tempering Furnace / Small Tempered Glass Making Machine
Product Description:
Solar Glass Tempering Furnace is a new generation tempering machine to temper Flat type glass. Compared with same kind of product in domestic and abroad, this machine has some advantages like reasonable technical technology, powerful software function of system control, high reliability, superior insulation function, low production consume, automatic control by computer, and high capacity etc. especially for high-grade glass products, such as Low-E glass and coated glass.
Machine Structure
Solar Glass Tempering Furnace is consisted of Loading section, Heating section, Flat Tempering section, Unloading section, Blower System and Control System. The glass sheet enters into heating oven furnace from loading table, and tempered & cooled in flat quench & cooling section after heating. It goes to unloading table to finish process.
Supply scope:
1. Loading table 2. Heating Section 3. Flat Tempering/Quenching
section
4. Unloading table 5. Control System 6. Spare parts 7.Free
door-door installation and debugging
Main Parameters
| Type | Max.Glass Size(mm) | Min.Glass Size(mm) | Glass Thickness(mm) | Productivity(M2/H) | Installed Capacity(KVA) |
| AT-TA1020 | 1000*2000 | 100*250 | 3-19 | 80 | 300 |
| AT-TA2030 | 2000*3000 | 100*250 | 3-19 | 108 | 400 |
| AT-TA2036 | 2000*3660 | 100*250 | 3-19 | 131 | 500 |
| AT-TA2436 | 2440*3660 | 100*300 | 3-19 | 160 | 630 |
| AT-TA2442 | 2440*4200 | 100*300 | 3-19 | 186 | 630 |
| AT-TA2450 | 2440*5000 | 100*300 | 3-19 | 222 | 800 |
| AT-TA2460 | 2440*6000 | 100*300 | 3-19 | 266 | 1000 |
AT Series Solar Glass Tempering Furnace GUARANTEE/ WARRANTY :
The quality guarantee period for all the machine is 1 year, any
damage on the electric parts during the quality guarantee period
can be maintained or replaced free, (Except in the course of usage,
damage due to human errors).
And the buyer will have our forever After- sales service in the
future.
AT Series Solar Glass Tempering Furnace Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
AT Series Solar Glass Tempering Furnace After-sales Service
1. Free Training Help Customers Use the Tempering Furnace
2. Free door-to-door Installation and Debugging
3. Free door-to-door Service Twice a year
4. Free Long-life Technical Support

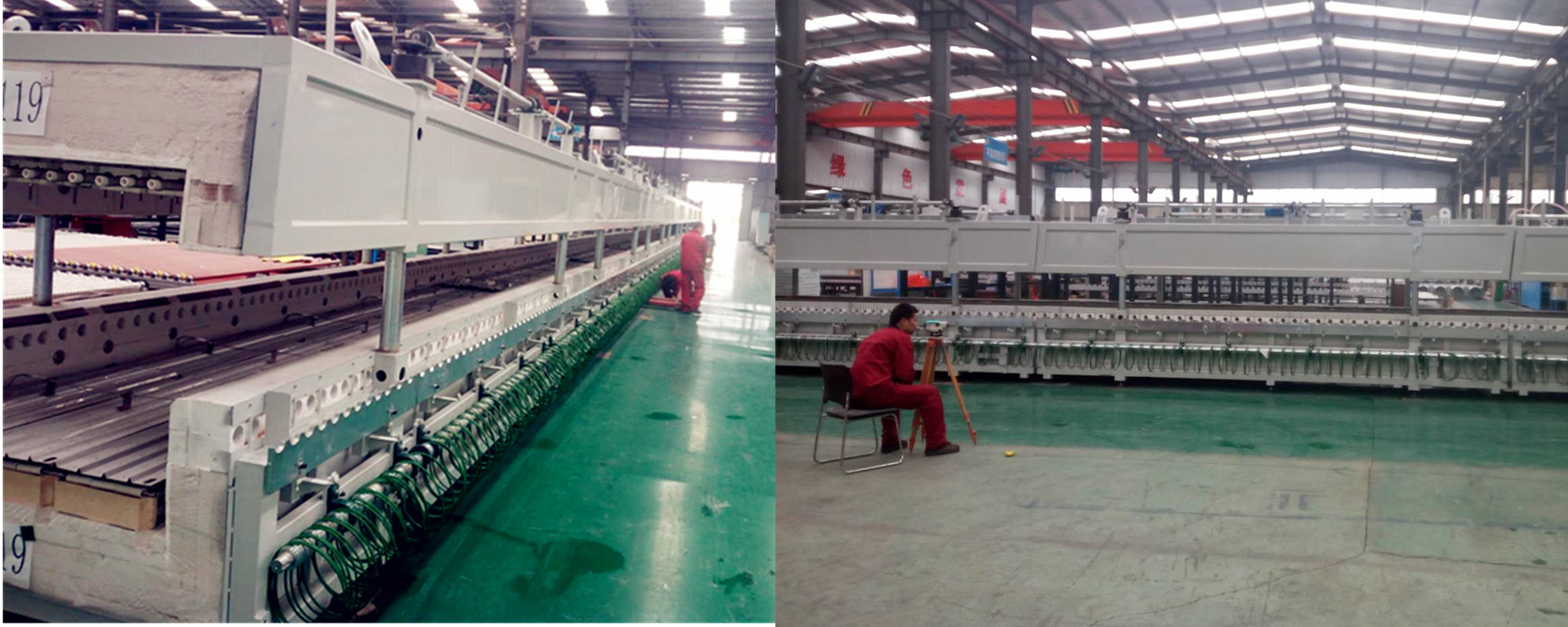

Detailed Images:
|
|
