Professional Glass Machinery Manufacture Glass Tempering Furnace & Glass Laminated Line
7 Years
| Ask Lasest Price | |
| Brand Name : | AUTO |
| Model Number : | AT-TAQ2450 |
| Certification : | CE, 3C, UL, ISO |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 100 SETS/YEAR |
| Delivery Time : | 2-4 MONTHS |

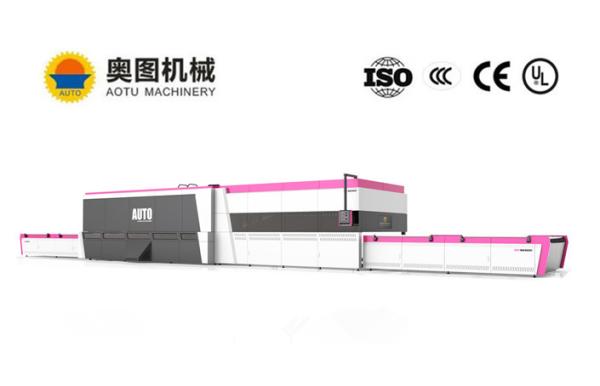

Convection Flat Glass Toughening Oven 2440*5000 mm
Product Description:
AT Series Convection Flat Glass Tougnening Oven is a new generation tempering machine to temper Flat type glass. Compared with same kind of product in domestic and abroad, this machine has some advantages like reasonable technical technology, powerful software function of system control, high reliability, superior insulation function, low production consume, automatic control by computer, and high capacity etc.
Machine Structure and Working principle
Convection Flat Glass Tougnening Oven is consisted of Loading section, Heating section, Flat Tempering/Tougnening section, Unloading section, Blower System and Control System. The glass sheet enters into heating oven from loading table, and tempered & cooled in flat quench & cooling section after heating. It goes to unloading table to finish process.
Supply scope:
1. Loading table 2. Heating Section 3. Flat Tempering section
4. Unloading table 5. Control System 6. Spare parts 7.Free
Installation
Main Parameters
| Type | Max.Glass Size(mm) | Min.Glass Size(mm) | Glass Thickness(mm) | Productivity(M2/H) | Installed Capacity(KVA) |
| AT-TA1625 | 1600*2500 | 100*250 | 4-19/25 | 85 | 230 |
| AT-TA2030 | 2000*3000 | 100*250 | 4-19/25 | 108 | 400 |
| AT-TA2036 | 2000*3660 | 100*250 | 4-19/25 | 131 | 500 |
| AT-TA2436 | 2440*3660 | 100*300 | 4-19/25 | 160 | 630 |
| AT-TA2442 | 2440*4200 | 100*300 | 4-19/25 | 186 | 630 |
| AT-TA2450 | 2440*5000 | 100*300 | 4-19/25 | 222 | 800 |
| AT-TA2460 | 2440*6000 | 100*300 | 4-19/25 | 266 | 1000 |
AT Series Glass Toughening Oven GUARANTEE/ WARRANTY
The quality guarantee period for all the machine is 1 year, any
damage on the electric parts during the quality guarantee period
can be maintained or replaced free, (Except in the course of usage,
damage due to human errors).
And the buyer will have our forever After- sales service in the
future.
AT Series Glass Toughening Oven Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
AT Series Glass Toughening Oven After-sales Service
1. Free Training Help Customers Use the Tempering Furnace

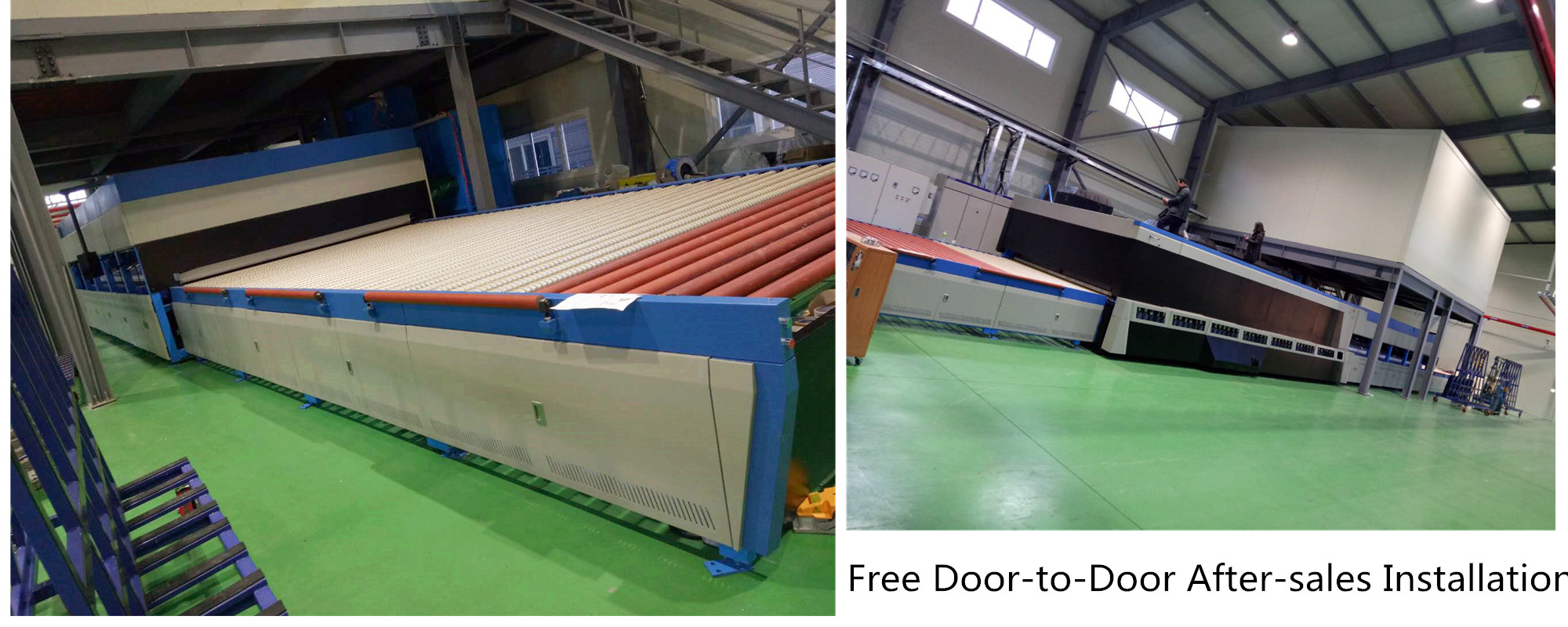

2. Free door-to-door Installation and Debugging
3. Free door-to-door Service Twice a year
4. Free Long-life Technical Support
Detailed Images:
|
|
